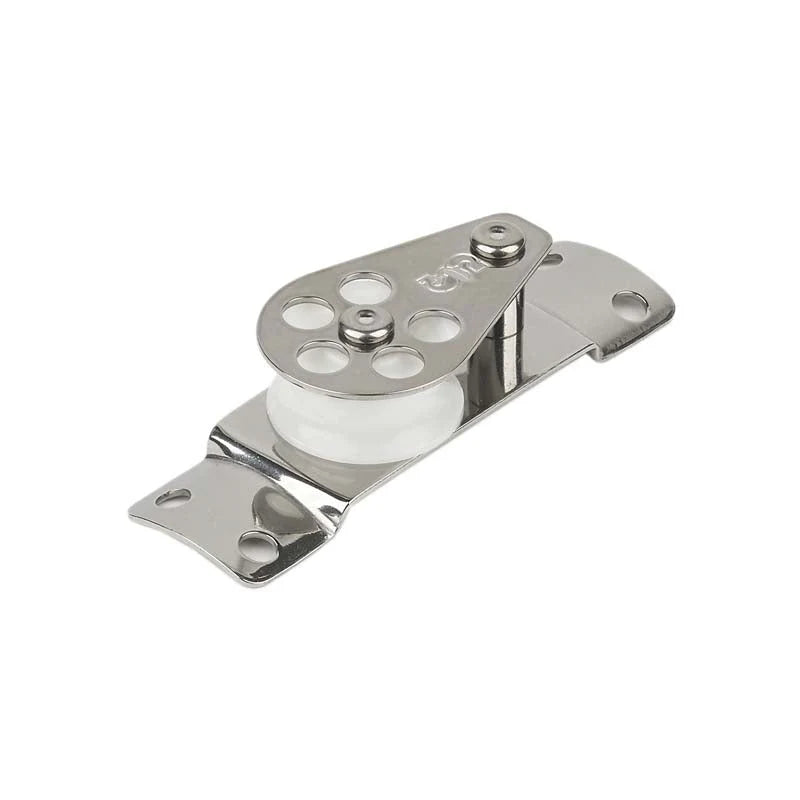

2 Series Aluminum cheek with curved base cheek block.
Curved base fits spar diameters up to 2". Delrin(tm) plain bearing ensures high safe working load and is good for static loads.
- Sheave Dia. 1-1/16"" (27 mm)
- Max Line 5/16" (8 mm)
- Length 3-1/2" (89 mm)
- Width 1" (25 mm)
- Height 21/32" (17 mm)
- Fasteners (4) #10 RH (5 mm)
- C/C 3" (76 mm)
- SWL 900 lbs. (410 kg)
- Weight 1.5 oz. (42 g)
- SCH 30.04
