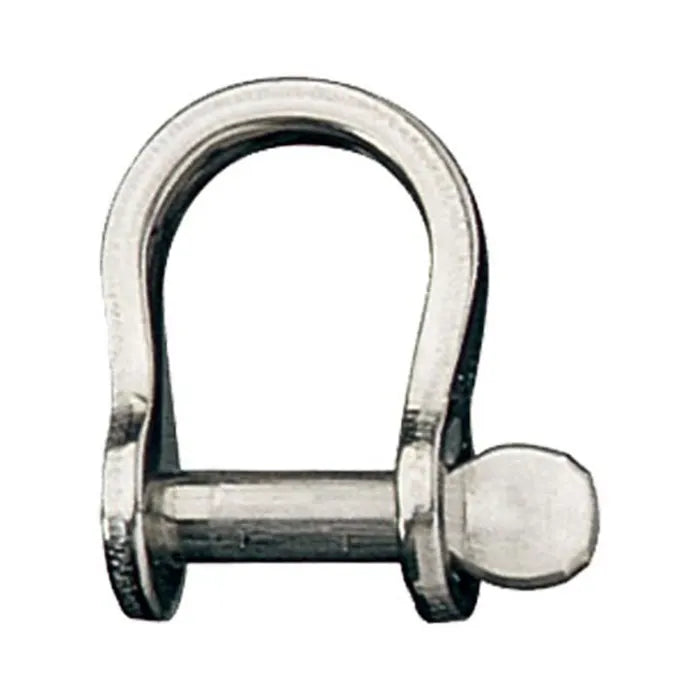

Stainless Steel Bow Shackle, 1/4" Pin, Coined Head
FEATURES
High strength to weight ratio
Specifications
- P.L. B.L. (lb)3090
- U.D.L. B.L. (lb)5070
- Weight (oz) 0.7
- Notes: UDL BL - The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL - The “Point Load” breaking load of the shackle; the load is only applied at the center or one side of the shackle pin.
-

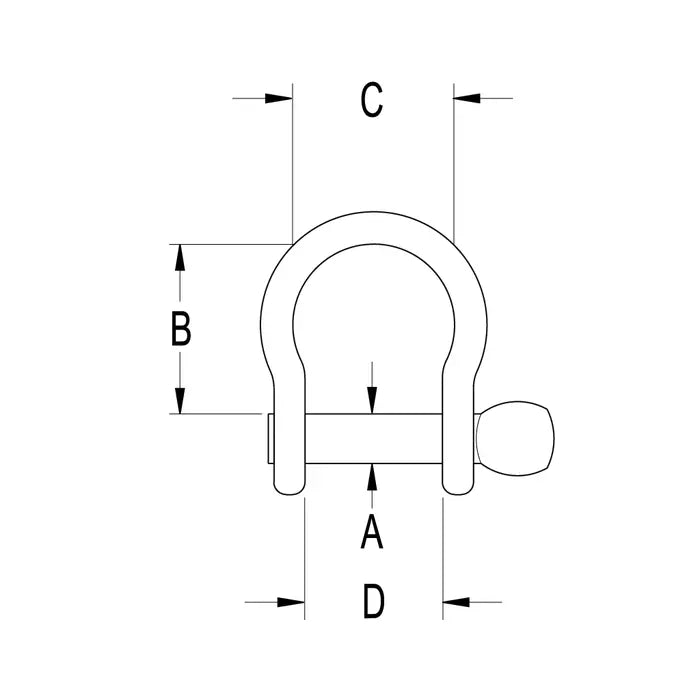

A (in) 1/4 B (in) 13/16 C (in) 3/4 D (in) 5/8 - RF635
